63/37 Yellow Brass

  • Image 1
SKU:
SUN-BSF-YB
Bookmark and Share


Product Description

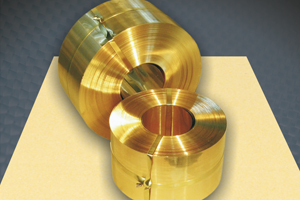

63/37 Yellow Brass :
Sunraj Industries
exports 63/37 Brass which is also known as Common Brass and Yellow Brass. 63/37 Brasses are copper zinc alloys with a wide range of engineering uses. The addition of zinc to copper raises the strength and gives a range of properties, and the brasses are a very versatile range of materials. They are used for their strength, corrosion resistance, appearance and colour, and ease of working and joining. The single phase alpha brasses, containing up to about 37% zinc, are very ductile and easy to cold work, weld and braze. The dual phase alpha-beta brasses are usually hot worked. Brasses are resistant to corrosion in many media.

63/37 Brass is widely used in Radiator Tanks and Cores, Flashlight Shells, Lamp Fixtures, Fastenerslocks, Hinges, Pins, Rivets, Buttons, Plumbing Accessories.

Chemical Composition Of Brass :

Material Normal Composition Nearest Relevant Composition Specification
63/37 Yellow Brass 63% Cu, 37% Zn CZ108 Cu Zn 37
  426/1
H 3100
C 3560



MECHANICAL PROPERTIES AS PER : B.S. : 2870 :

Material Temper Tensile Strength N/mm2 Elongation % on 50 mm G.L. Vickers Hardness VPN ISO             JIS
63/37 Yellow Brass AnnealedCondition('O')
Quarter Hard (1/4H)
Half Hard (1/2H)
Hard (H)
280 Min
340 Min
385 Min
460 Min
40 Min
30 Min
15 Min
5 Min
80 Max
75 Min
110 Min
135 Min
Cu Zn 37 ISO:426/1 JIS 3100
C 3560
