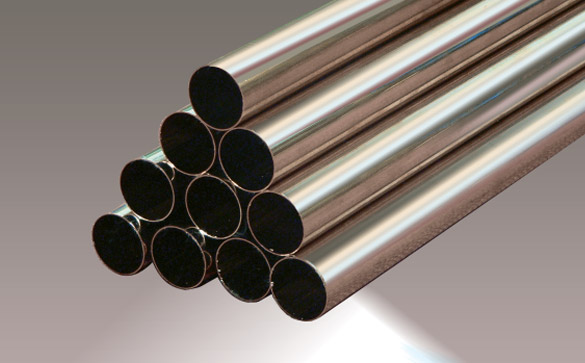

90/10 Cupronickel Tubes
SKU:
SUN-CCAT-CT-90/10
Product Description
Sunraj Industries manufacture, exports and supplies 90/10 Cupro Nickel Tube which have excellent resistance to corrosion in sea water. Besides this, these tubes have high resistance to corrosion and air impingement. Cupro Nickel Tubes have good strength and ductility at ordinary temperatures and relatively high strength at elevated temperatures.
90/10 Cupro Nickel Tubes which are widely used in condensers, coolers, Power Plants, Ship Building & Ship Repairs, and heat exchangers as well as marine applications. These Cupro Nickel Tubes are produced by Sunraj Industries in a wide range of OD (outer diameter), wall thickness and temper conditions.
Technical Specification of 90/10 Cupro Nickel Tubes :
| Standard | BS 2871 PART 3 | ASTM B-111 | DIN 1785 | NFA 51 102 | JIS H3300 | IS 1545 |
| Symbol | CN 122 | C 70600 | CuZn28 Fe 1 Min. |
CuZn10 Fe 1 Min. | C 7060 | CuZi 10 Fe 1 |
| Cu | Remainder | Remainder | Remainder | Remainder | Remainder | Remainder |
| Pb | 0.01 | 0.05 | 0.03 | 0.05 Sn+Pb |
0.05 | 0.05 |
| Ni | 10.0-11.0 | 9.0-11.0 | 9.0-11.0 | 9.0-11.0 | 9.0-11.0 | 9.0-11.0 |
| Fe | 1.0-2.0 | 1.0-1.8 | 1.0-2.0 | 1.0-2.0 | 1.0-1.8 | 1.0-1.8 |
| Mn | 0.5-1.0 | 1.0 | 0.5-1.0 | 0.3-1.0 | 0.2-1.0 | 0.5-1.0 |
| Zn | - | 1.0 | 0.5 | 0.5 | 0.5 | 0.5 |
| S | 0.05 | - | 0.05 | 0.02 | - | - |
| C | 0.06 | - | 0.05 | 0.05 | - | - |
| Total Impurites Max. | 0.30 | - | 0.30 | 0.10 | Rem (Cu+Ni+Fe+Mn 99.5 Min.) | 0.30 |
| Condition | M | O 61 | F 29 | - | O | O |
| O | HR 55 | D | ||||
| Yield | - | 105 Min. | 90-180 | - | - | - |
| Strength | - | 240 Min. | ||||
| N/mm2 | ||||||
| Tensile | - | 275 Min. | 290 Min. | - | 275 Min. | 295 Min. |
| N/mm2 | - | 310 Min. | - | - | 285 Min. | |
| Elongation | - | - | 30 Min. | - | 30 Min. | - |
| % | - | - | - | |||
| Hardness HV 5 | 150 | - | - | 70-100 | - | 110 Max. |
| 90-120 | 130 Min. | |||||
| Grain Size | 0.05 Max. | - | - | 010-045 | 010-045 | - |
| Mm (75X) |
